Main Service Panel AC Power Line Protection with Enhanced Power/Energy Metering
The 560LS Executive Series provides 560,000A of rugged surge protection at the main service panel along with new onboard, revenue-grade power and energy meter. Each phase is guarded by 14 redundant protection paths – reassuring when sensitive equipment’s continuous operation is at stake. Twenty-year, no-nonsense warranty (five-year warranty on power meter); free protection modules for life. Series features mix-and-match options for a customized protector at stock prices.
Features
560LS: I peak=560,000A/Phase (8 x 20µs waveform)
Revenue-grade power and energy meter
UL Listed 1449 4th Ed., NEMA LS1-1992
14 times redundant protection paths per phase
Dual modules per phase and N-G
Employs new 40kA high headroom varistors with built-in high-speed thermal disconnect and dedicated cartridge fuse per surge path
Solid copper bus bar construction
Field-replaceable modules
EMI/RFI noise filtering
Continuously monitored protection circuits
Internal and external status indicators
Upgraded Front Panel with Surge Event Counter, beeper and status relay (1 form C contacts)
NEMA 1, Powder Coated Steel Enclosure
|
SERVICE ENTRANCE SPD CATEGORY C
The 560LS Series provides 560,000A of rugged surge protection at the main service panel along with new onboard, revenue-grade power and energy meter. Each phase is guarded by 14 redundant protection paths – reassuring when sensitive equipment’s continuous operation is at stake. Twenty-year, no-nonsense warranty (five-year warranty on power meter); free protection modules for life. Series features mix-and-match options for a customized protector at stock prices.
|
SERVICE ENTRANCE SPD CATEGORY C Serie PT
Building Entry SPD - 250,000 Amps per phase 8x20µs.
True Redundancy 3X - UL1449 4th Edition
Data Sheet PDF - Specifications PDF - Installation PDF
|

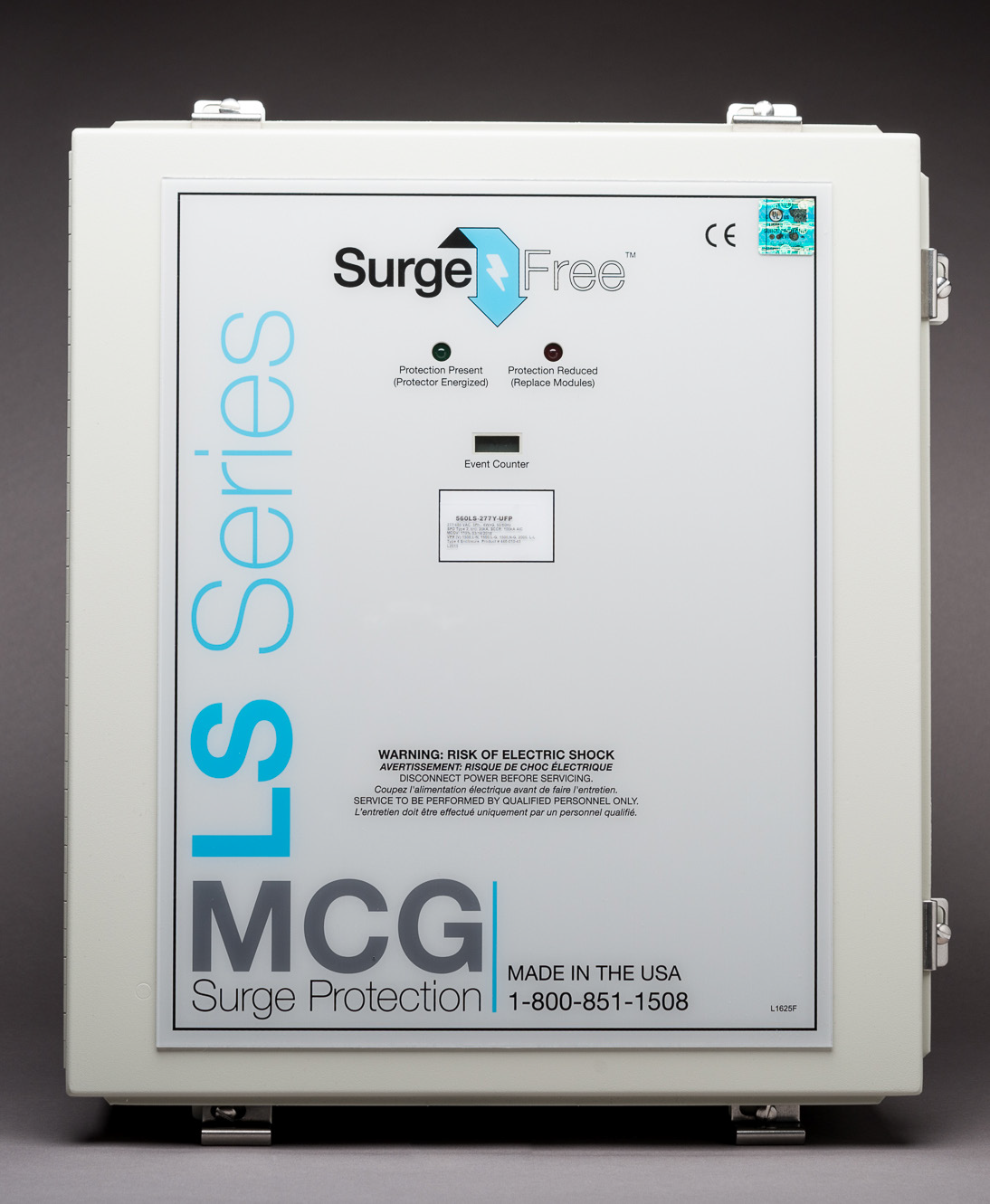

MID-BUILDING ENTRY SPD CATEGORY B Serie LS

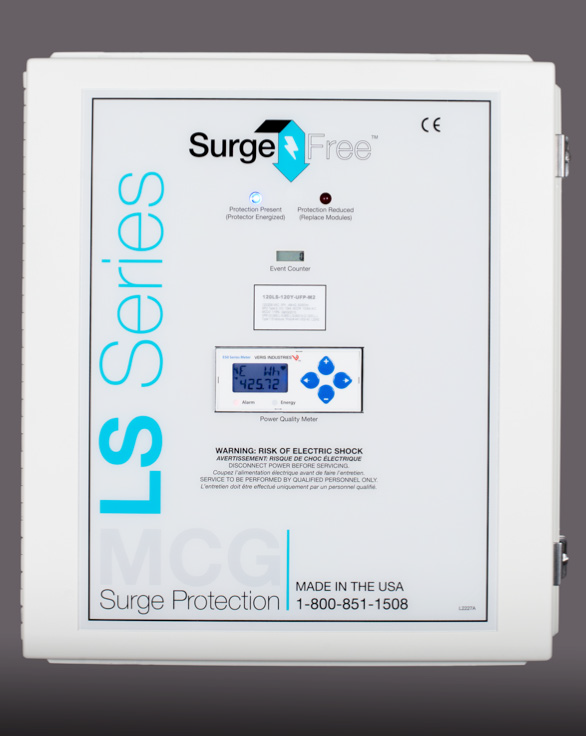

120LS EXECUTIVE - Building Entry SPD - 120,000 Amps per phase 8x20µs.
On-Board Power Metering
True Redundancy 3X - UL1449 4th Edition
Data Sheet PDF - Specifications PDF - Installation PDF
|

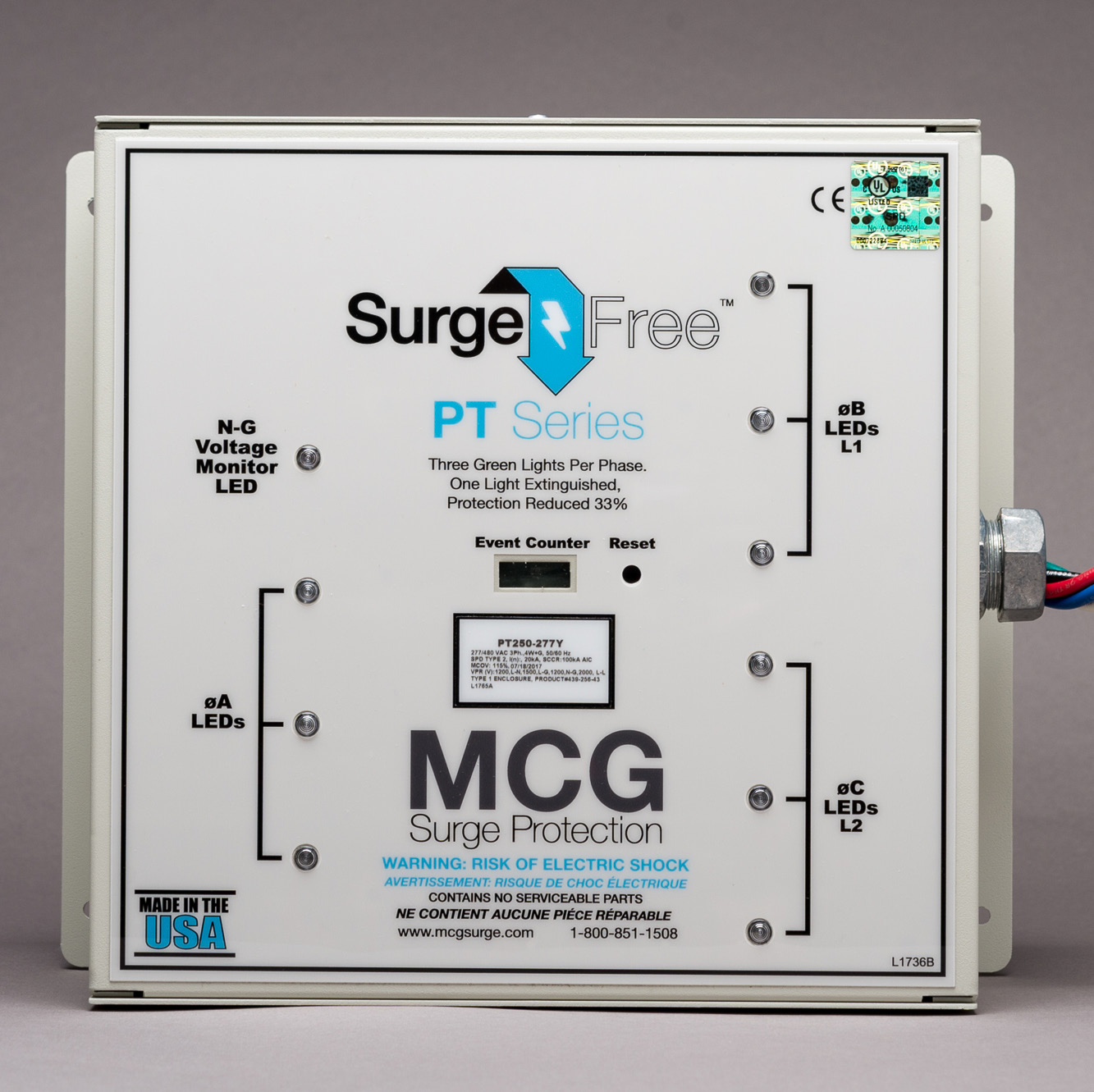

SERVICE ENTRANCE SPD CATEGORY C Serie PT
Building Entry SPD - 250,000 Amps per phase 8x20µs.
True Redundancy 3X - UL1449 4th Edition
Data Sheet PDF - Specifications PDF - Installation PDF
|
MID-BUILDING ENTRY SPD CATEGORY B Serie PT
PT120 - Mid-Building Entry SPD -120,000 Amps per phase 8x20µs.
True Redundancy 2X - UL1449 4th Edition
Data Sheet PDF - Specifications PDF - Installation PDF
|
